Auto tracking camera PTZ – 12x – easy configuration
870,00€ HT
Camera HD avec système autotrack pour suivre le speaker dans ses déplacements (bascule automatique en plan large pendant le mouvement de caméra)
Double optique et sortie en 5 flux HD (gros plan, panoramique…)
●Panasonic’s 1/2.7 inch, 2.07 megapixels CMOS sensor
●72.5° Wide-angle Lens,12X Optical Zoom
●Sortie 3G-SDI + HDMI
https://www.youtube.com/watch?v=7SPt1y0J_Z0

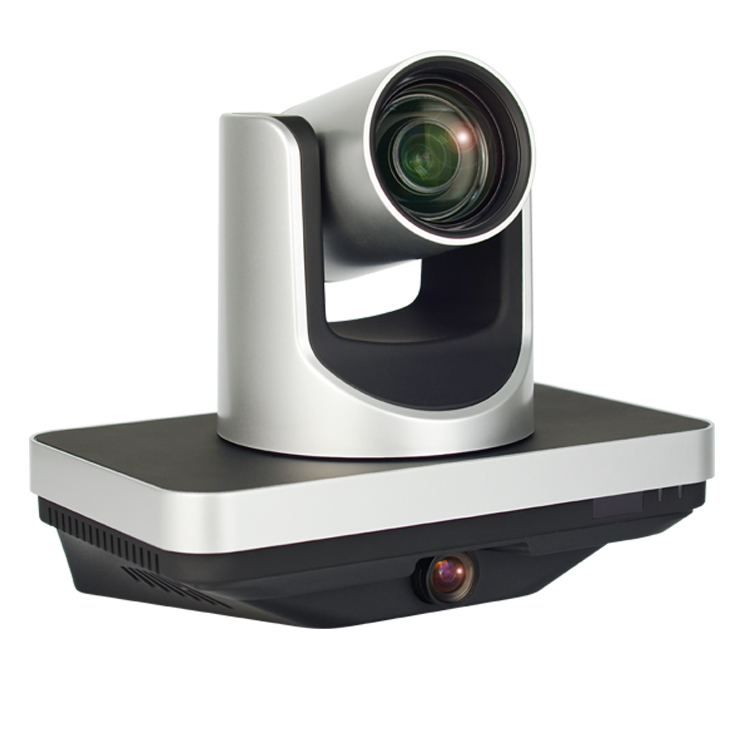

Two-in-One Design
The camera system can output 5 HD video channels (3 channels for PTZ Camera, 2 channels for Panorama Camera) at the same time. Both teacher and student tracking using the same device.
Changeable Lens for Panorama Camera
Panorama Camera has C/CS mount changeable lens - easy to use a different lens for a different classroom size.
Adjustable Viewing Angle for Panorama Camera
Panorama Camera viewing angle can be adjusted vertically (-25o ~ +15o) for convenient installation.
Highly Efficient Tracking
Built-in image recognition and tracking system. Tracking works without any auxiliary camera or tracking host.
Same Image Style from Both Cameras
Both PTZ and Panorama Cameras have the same sensors which allows the image output of the same brightness, color and other settings.
Wide-angle Lens
PTZ Camera has 72.5 degrees wide-angle lens with 12x optical and 16x digital zoom.
| Main Features |
●All-in-One Design All-in-One design, can output 5 channel HD video (3 channel for close-up camera, 2 channel for panorama camera) at the same time. both teacher tracking and student tracking are using the same device. ●Changeable Lens Panorama camera can replace the lens, compatible M12 mount lens, easy to use for different size classroom. ●Adjustable Viewing Angle Panorama camera can adjust viewing angle in vertical(-15° ~ 0°), convenient installation and debugging. ●High-efficiency Tracking Built-in image recognition and tracking algorithms can be tracking realized without any auxiliary camera or tracking host. ●Same Image Style Both panorama camera and close-up camera use the same ISP, make sure the image output have the same brightness, color, style, etc. ●Easy Configuration Easy to make a configuration for tracking, direct connect by Ethernet, just need make some base parameters for configuration, large engineering debugging time and cost will be save. ●72.5° Wide-angle Lens + 16x Digital Zoom Close-up camera use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom (optional). ●H.265 Support H.265 encoding support, enabling full HD 1080p video stream by ultra-low bandwidth. ●1080P Full HD Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image. ●Ultra-high Frame Rate The output frame rate up to 60fps in 1080P. ●AAC Audio Encoding Close-up camera support AAC audio encoding, better sound quality and smaller bandwidth. ●Local Storage Close-up camera support local storage module, directly recording to local USB flash disk without NVR. |
| Model | ATCam1 |
| Name | All-in-One HD Teaching Tracking Camera |
| Close-up Camera | |
| Video System | 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 |
| Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 |
| Digital Zoom | 16x (optional) |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 72.5° ~ 6.9° |
| Vertical Angle of View | 44.8° ~ 3.9° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +90° |
| Pan Speed Range | 1.7° ~ 100°/s |
| Tilt Speed Range | 1.7° ~ 69.9°/s |
| H & V Flip | Support |
| Image Freeze | Support |
| Local Storage | Support |
| Number of Preset | 255 |
| Preset Accuracy | 0.1° |
| Panorama Camera | |
| Video System | 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 |
| Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens Mount | M12 Mount |
| Teacher Panorama Lens | f=6mm, F1.8, AoV about 60°(default, changeable) |
| Student Panorama Lens | f=3.6mm, F1.8, AoV about 95° (default, changeable) |
| Minimal Illumination | 0.05 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
| Digital Noise Reduction | 2D, 3D digital noise reduction |
| Backlight Compensation | Support |
| Image Freeze | Support |
| H & V Flip | Support |
| Network Features | |
| Video Compression | H.265 / H.264 / MJEPG |
| Video Stream | First Stream, Second Stream |
| First Stream Resolution | 1920x1080, 1280x720, 1024x576 |
| Second Stream Resolution | 720x576, 720x480, 320x240 |
| Video Bit Rate | 128Kbps ~ 8192Kbps |
| Bit Rate Type | Variable Rate, Fixed Rate |
| Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
| Audio Compression | AAC |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
| Support protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |
| Input/Output Interface | |
| HD Output | 1xHDMI: Version 1.3 |
| 2x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard | |
| Network Interface | 2xRJ45: 10M/100M Ethernet Interface |
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In |
| USB | 1xUSB2.0: Type A female jack |
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
| 2xRS232 Out: 8pin Min DIN, Max Distance: 30m | |
| 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | |
| Power Jack | JEITA type (DC IN 12V) |
| Generic Specification | |
| Input Voltage | DC 12V |
| Current Consumption | 1.5A (Max) |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 18W (Max) |
| MTBF | >30000h |
| Size | 240mm * 144mm * 200mm |
| Net Weight | 2.0Kg |
